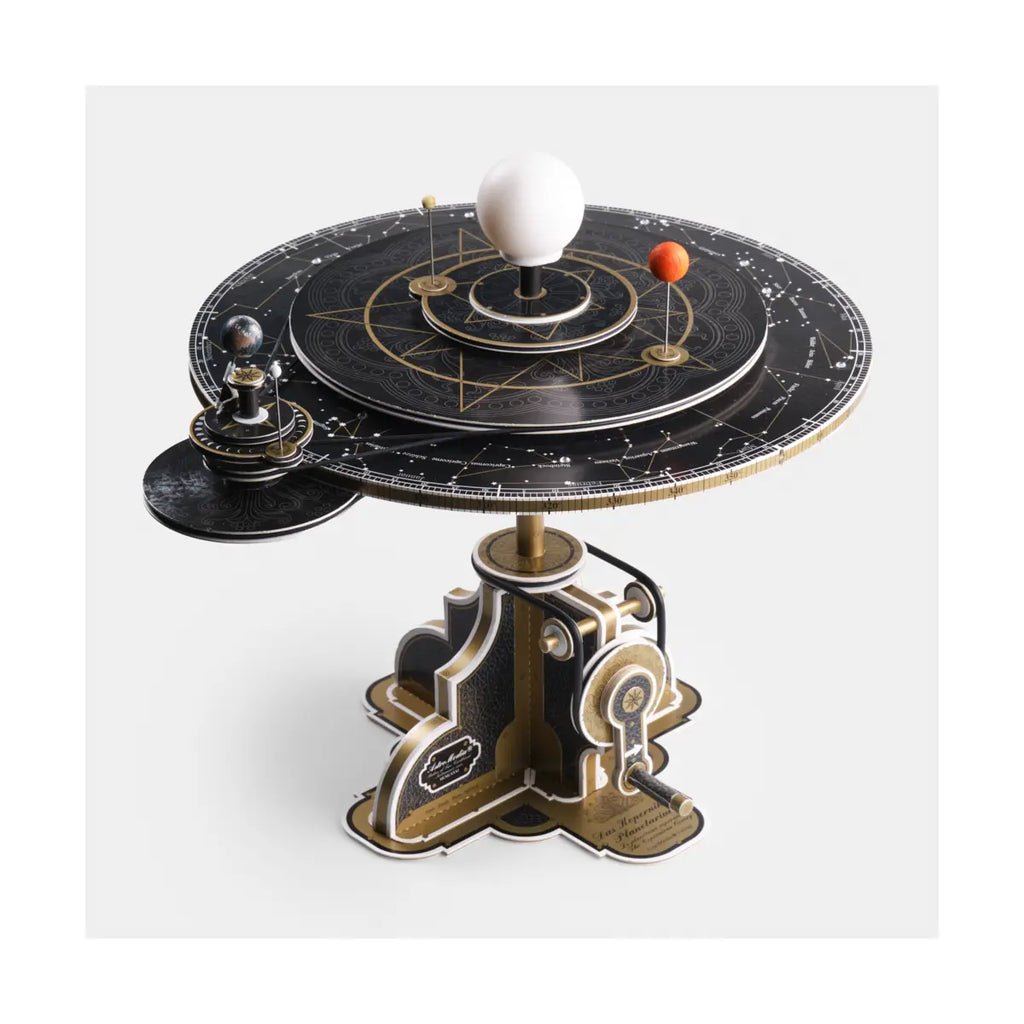

A world premiere: the first ever fully functional cardboard orrery!
With this fantastic kit you can demonstrate the orbital movements of Mercury, Venus, and Earth around the Sun, as well as the orbit of the Moon around the Earth. One turn of the crank represents one week and shows the relative movements of the heavenly bodies accurately. The 4.5 cm measuring illuminated Sun in the centre helps demonstrating the seasons, the phases of Moon and Venus, eclipses, and much more. A beautiful kit that never fails to impress!
Copernicus' discovery, Orrery's realisation
The mechanical planetariums of modern times are almost all based on the ideas of Nicolaus Copernicus (1473 - 1543), who assumed that the Sun was the centre of the world. He taught that the Earth makes three movements: it turns around itself once in 24 hours, travels around the Sun in a circular path in a year and, with a third movement, turns its axis so that it always points in the same direction and not towards the Sun.
At the beginning of the 18th century, the Earl of Orrery and other English noblemen commissioned mechanical crank-driven planetary models from clockmakers, which have since been called orreries.
Cranking around the Sun

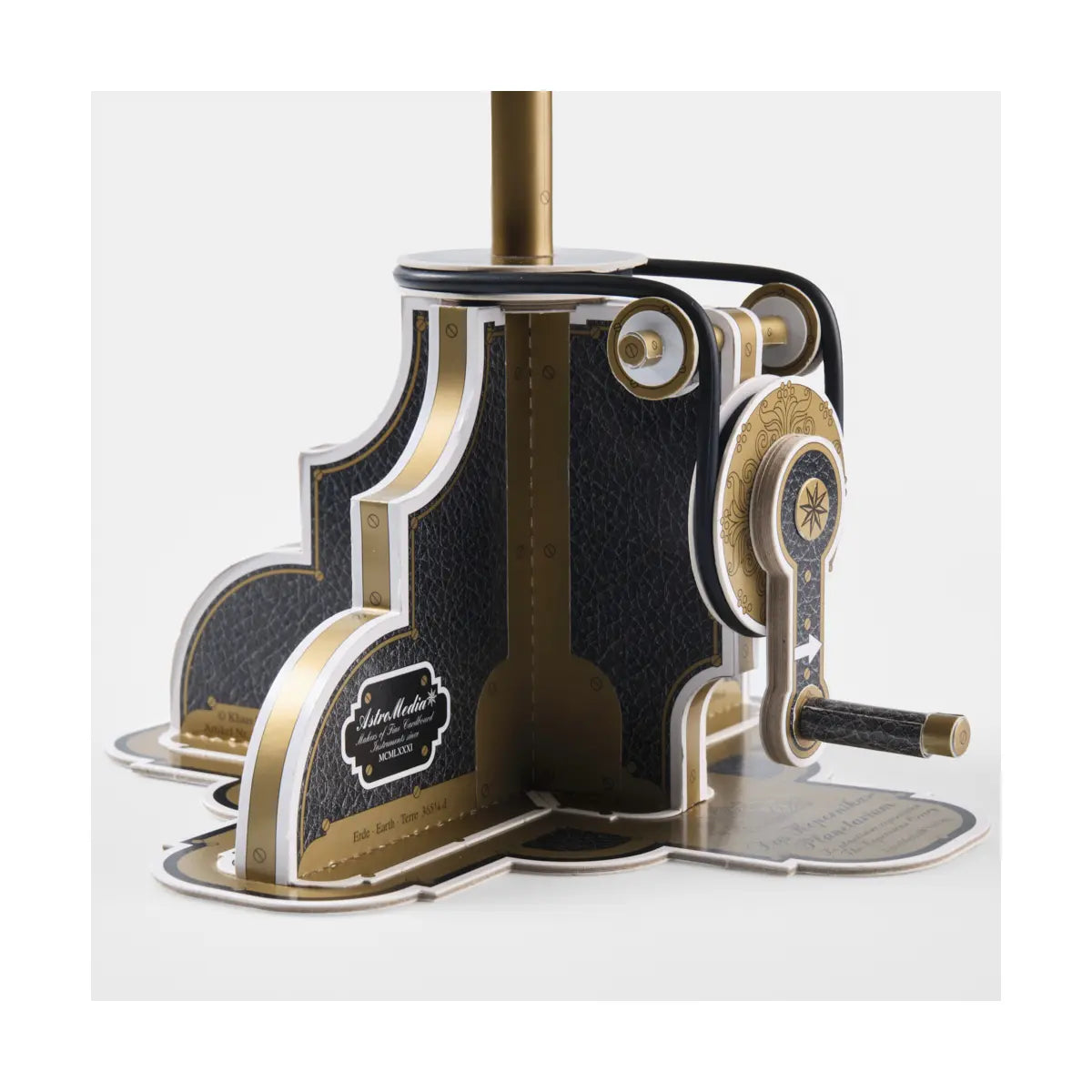

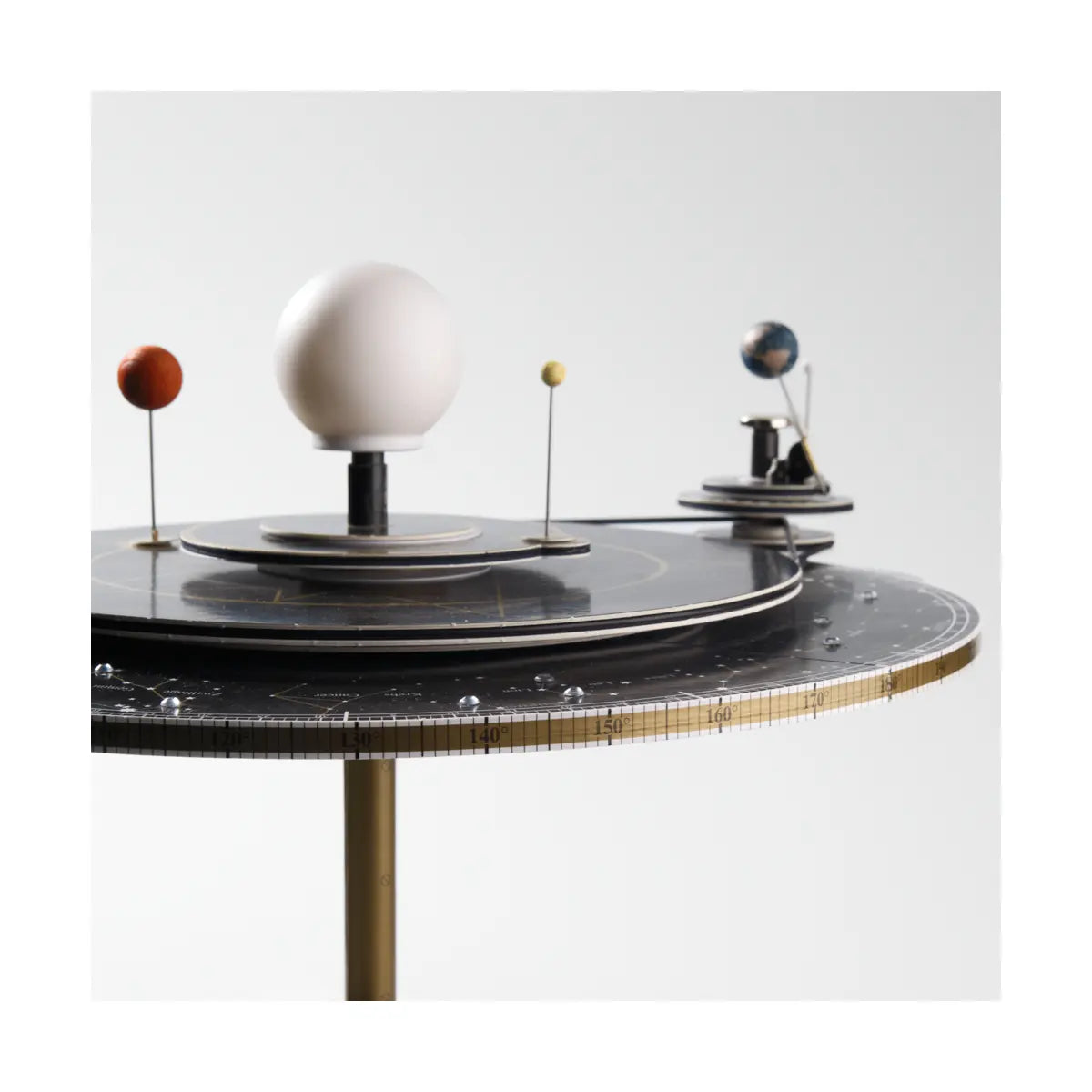

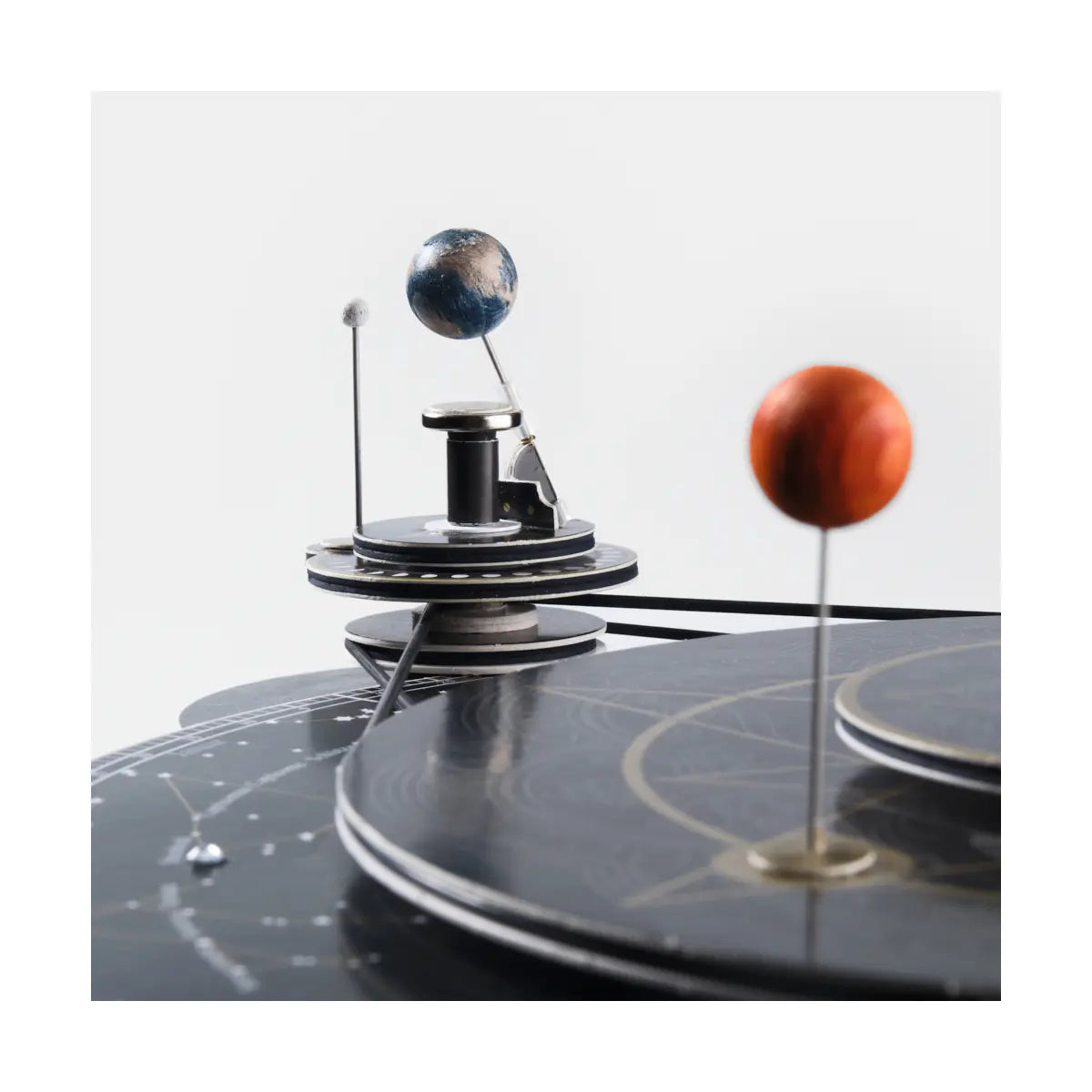

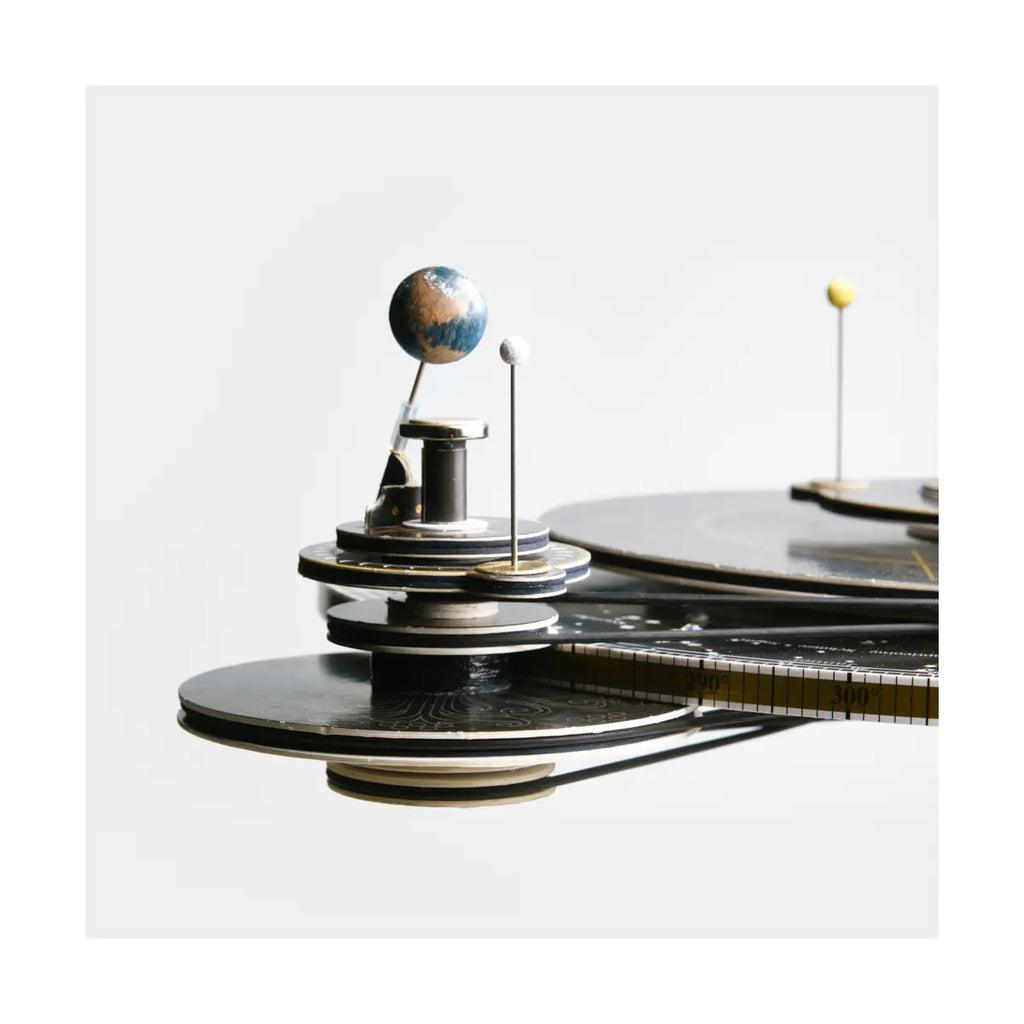

The Copernican Orrery shows the movements of the inner planets Mercury and Venus as well as the Moon and the Earth, rotating around their oblique axes, which are always aligned in the same way. One turn of the crank on the gear made of rubber belts and grooved wheels represents the course of a week. In the process, it produces six different simultaneous movements, which are in approximate proportion to the actual rotation times. Many celestial processes can be explained in this way from the Copernican (heliocentric) point of view, e.g. the wandering of the Sun through the zodiac or the conjunctions of Mercury and Venus with each other and with the Sun.

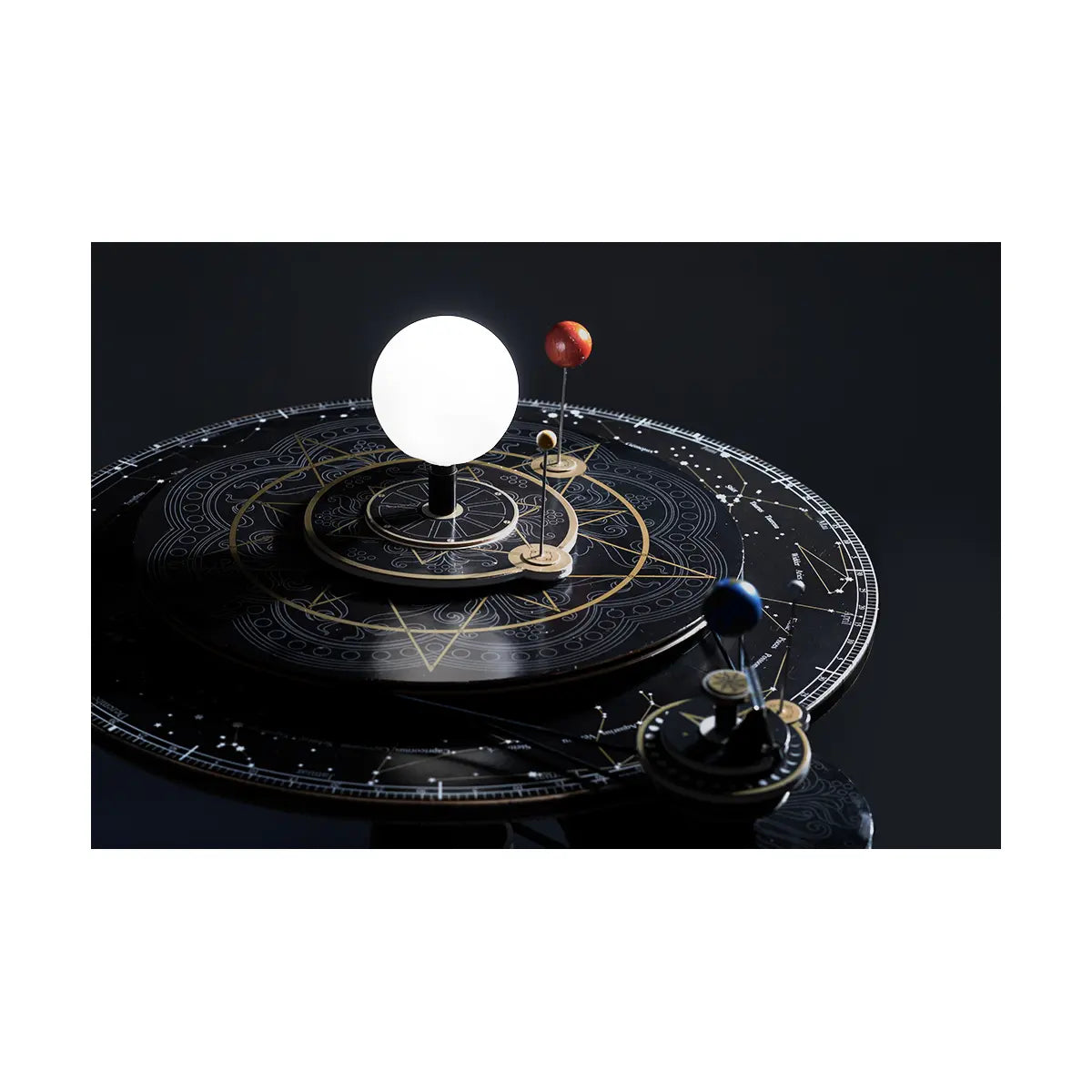

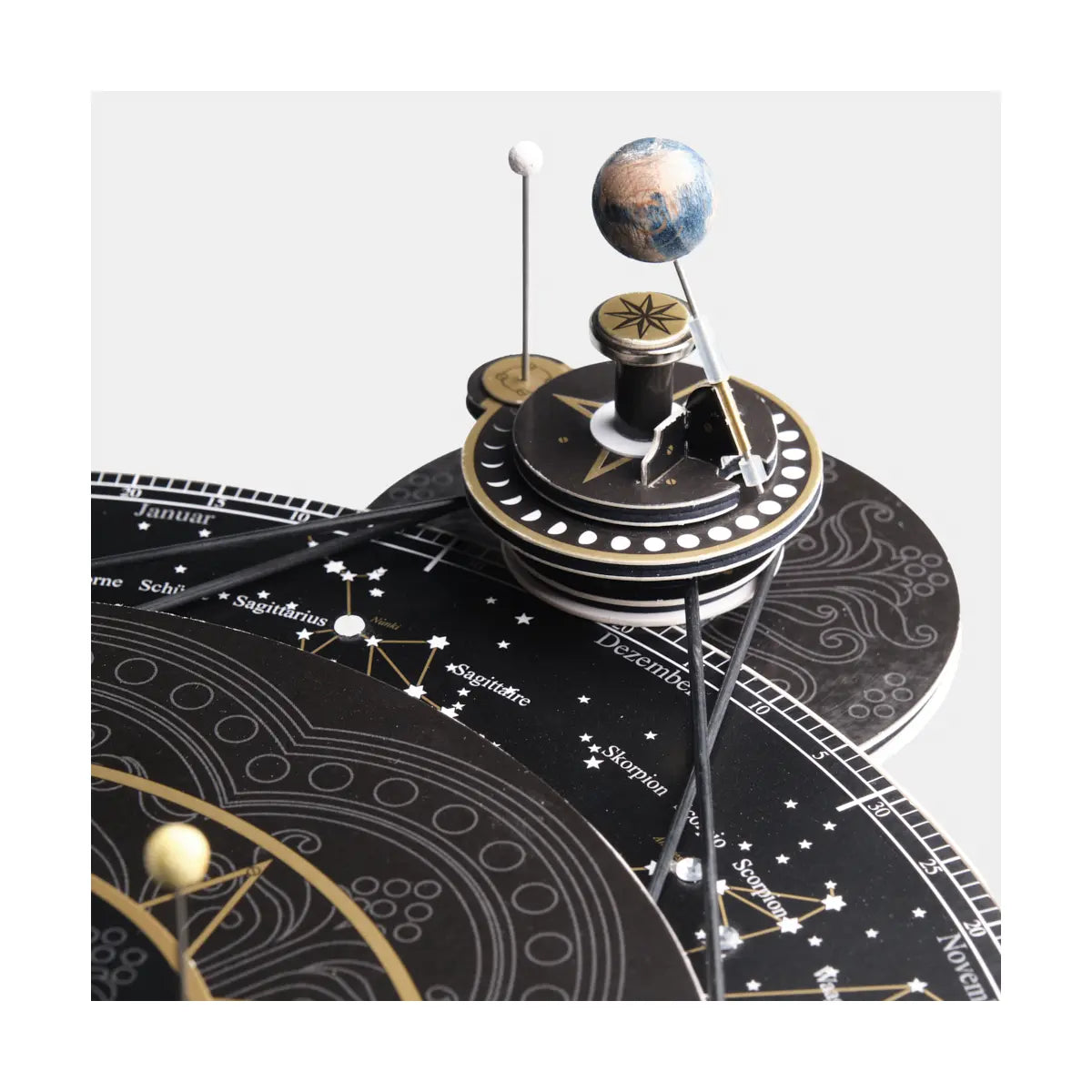

The Sun with bright LED illumination shows in the dark room not only the change of the seasons, but also the emergence of the moon phases, the eclipses and the crescent phases of Venus.
This kit contains:

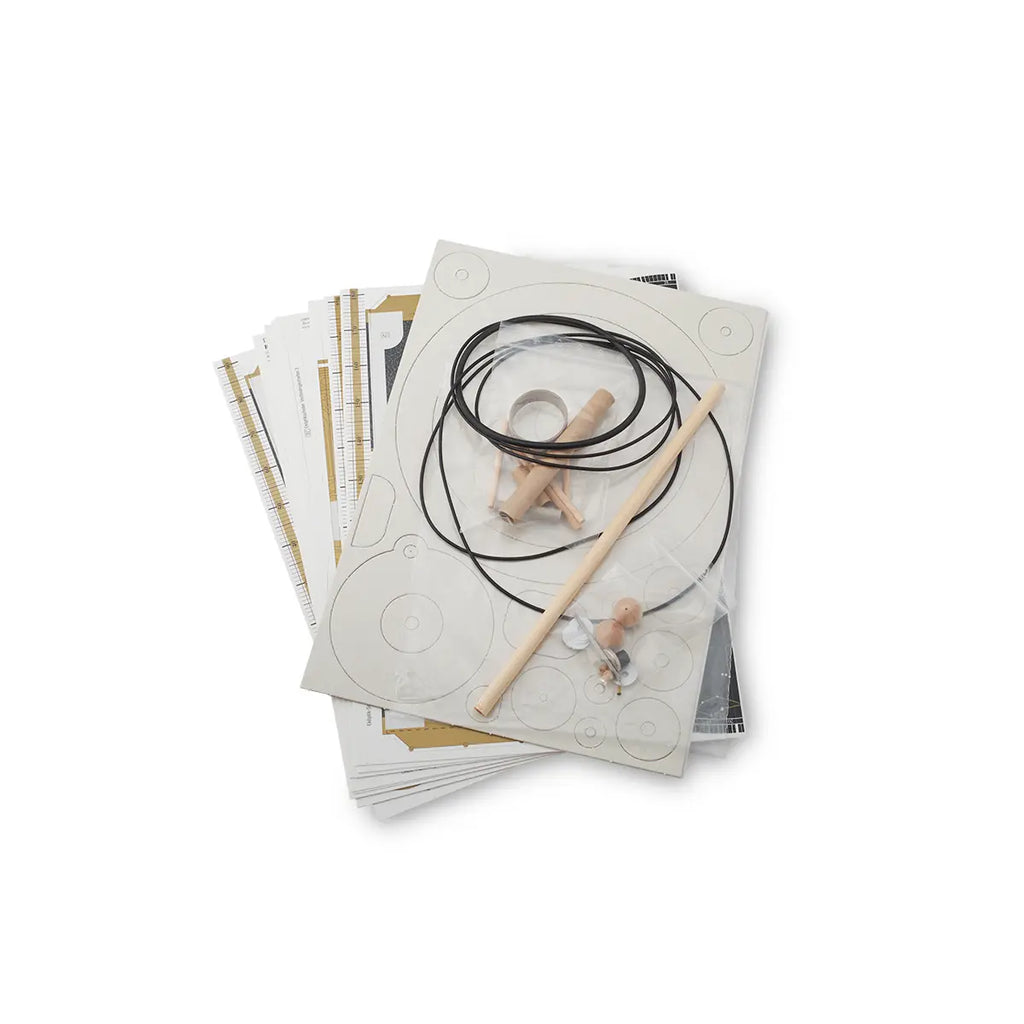

- 19 pre-cut sheets of construction cardboard and paper (13 printed, 6 blank), DIN A4
- accessories:
4 different cardboard tubes Cardboard tubes, OD 6.5 - 34 mm, ID 5 - 32 mm, length 14.5 - 100 mm (corrugations)
5 round timbers: diameter 4 - 8 mm, length 38 - 240 mm (axles)
18 plastic discs, OD 14 - 55 mm, ID 4.1 - 34.3 mm (axle and shaft bearings)
4 spring steel pins, diameter 1 x 43.5 mm (planetary mounts)
1 brass sleeve, 1.5 (OD) x 1.1 (ID) x 10 mm (earth axis bearing)
4 wooden spheres, unpainted, diameter 4.5 - 16 mm (planetary bodies)
1 silicone tube, 2.8 (OD) x 0.8 (ID) x 12 mm (earth rotation drive)
1 neodymium magnet, diameter 15 x 2.5 mm (earth rotation drive)
2 perma-ferrite magnets, diameter 8 x 4 mm (sun holder)

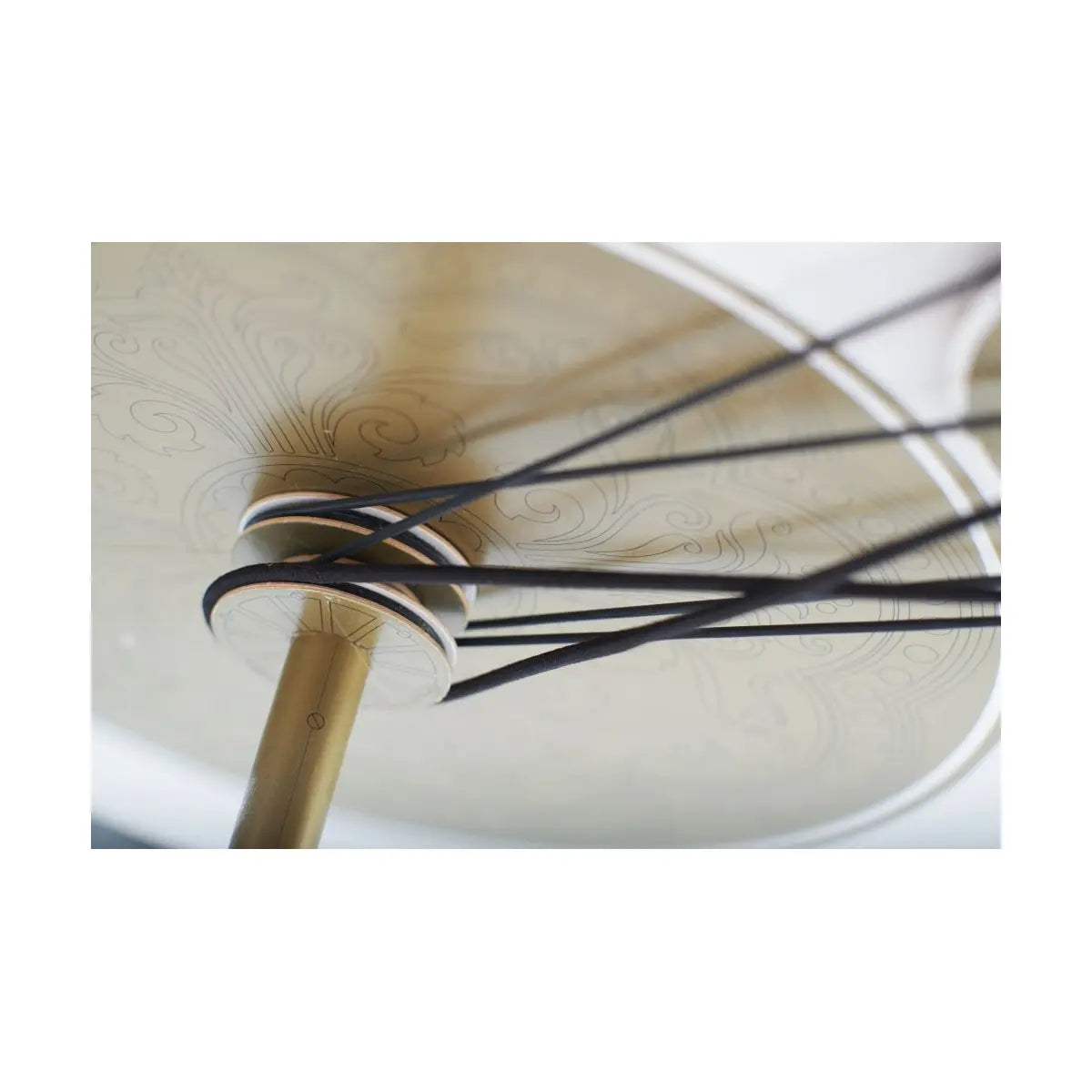

6 drive belts, NBR rubber, diameter 98 - 172 mm, cross-section diameter 2 - 4 mm, also available separately as a replacement set
1 LED light ball, incl. 3 button cells (sun), also available separately as a replacement set - detailed construction manual

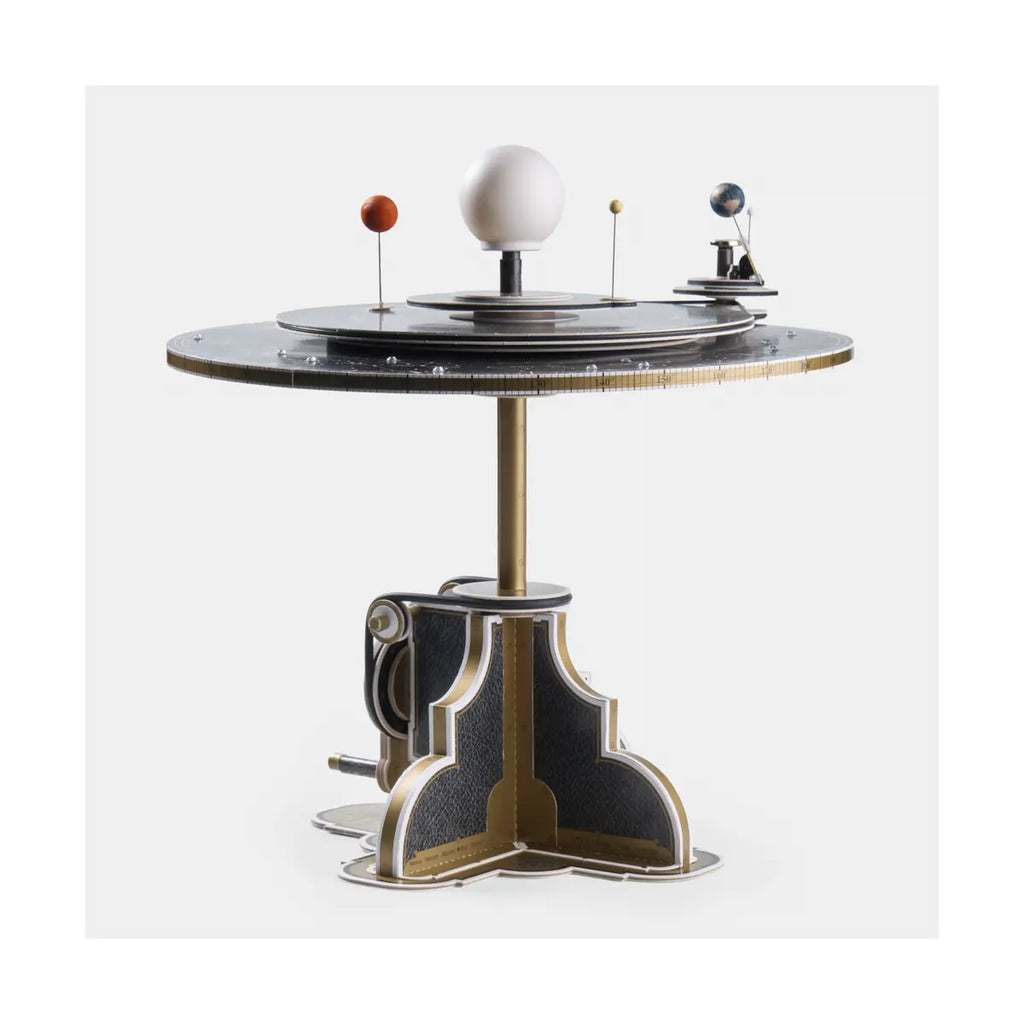

Dimensions of the built model: diameter approx. 29 cm, height approx. 28 cm
Construction time: approx. 40 hours
